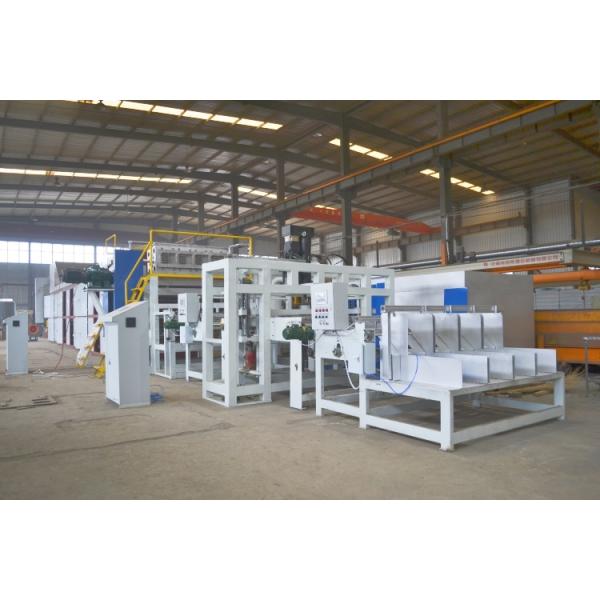

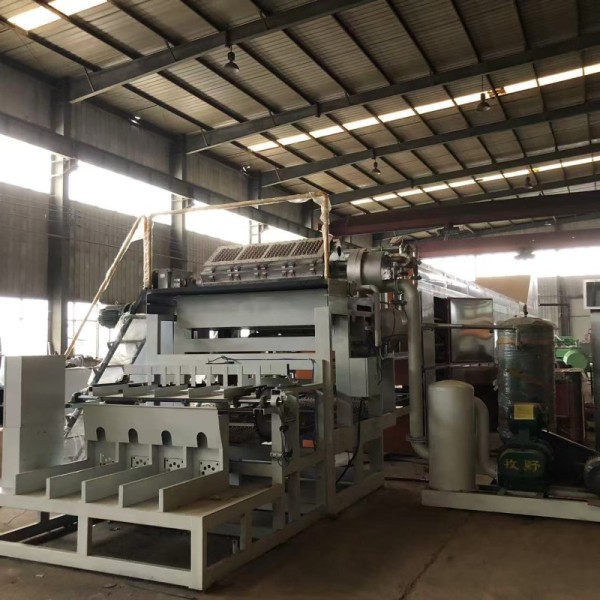

5000pcs/h Rotary Egg Tray Production Line Incorporating Automatic Stacking and Drying Technology for Streamlined Manufacturing PLC controlled
Product Description:
Fully Automatic Pulped Paper Egg Tray Making Machine
Machine for make paper egg tray,egg tray making machine,egg tray machine,paper tray machine.pulp moulding machine all refers to the Paper Egg Tray Machine.
Egg tray forming machine is a kind of machine which absorbs paper pulp-the raw material, on the surface of mould by vacuum to get various shape and ratio of wet and dry by regulating time. After such working procedure as transferring moulds, releasing moulds to complete paper tray production. Our forming machines adopt advanced PLC programmable controller; selecting of high quality electronic devices and pneumatic components; using stainless steel pulp barrels with high performance and long service life.
Features:
- High-efficiency Egg Tray Forming Machine for large-scale production
- Advanced Egg Box Making Machine ensuring uniform and durable trays
- Fully Automatic Egg Tray Machine with minimal manual intervention
- Energy-saving design reducing operational costs
- Environmentally friendly production process using recycled paper
- Easy operation and maintenance with user-friendly control system
- Customizable tray sizes to meet various customer requirements
- Stable performance ensuring consistent product quality
- Compact layout saving factory floor space
- Integrated drying system for efficient moisture removal
- Durable construction for long service life
Technical Parameters:
| Technical Parameter |
Specification |
| Product Name |
Egg Tray Production Line |
| Machine Type |
Egg Tray Machine |
| Drying Method |
Metallic Dryer (Hot Air Circulation) or Sun drying,Brick dryer, Box Dryer |
| Production Capacity |
Up to 5000 egg trays per hour |
| Raw Material |
Waste Paper, Cardboard |
| Tray Size |
Standard 30 eggs per tray |
| Drying Time |
20-30 minutes using Egg Tray Dryer |
| Power Requirement |
15-20 kW |
| Machine Dimensions |
Length 10m x Width 3m x Height 3m |
| Control System |
PLC Automatic Control |
Applications:
Packing and Shipping:
